Technical Specifications
- Testing Principle: Optical reflectance method
- Units: mmol/L or mg/dL (selectable)
- Testing Parameters: Total Cholesterol (TC), High-Density Lipoprotein (HDL), Triglycerides (TG), Low-Density Lipoprotein (LDL), TC/HDL Ratio
- Data Storage: Stores up to 300 test results

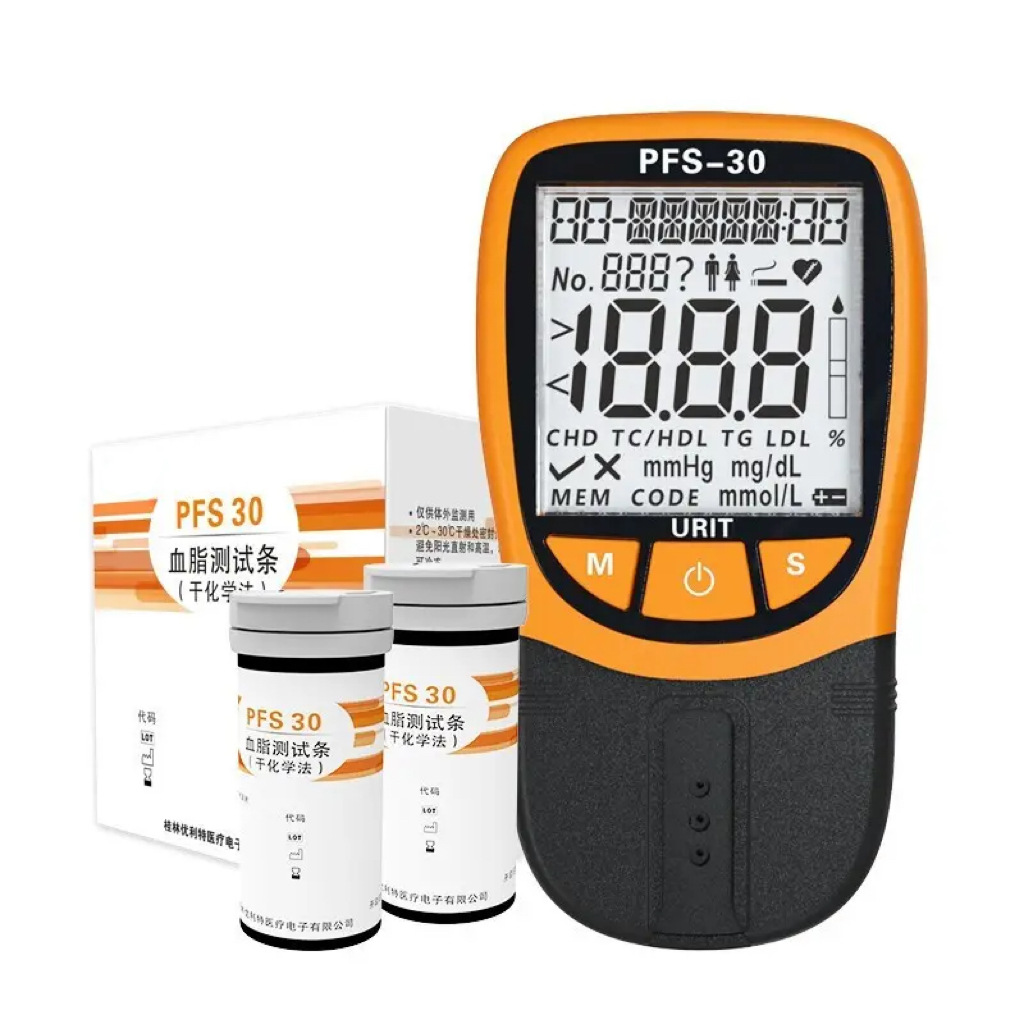

- Test Strips: PFS-30 Blood Lipid Test Strips

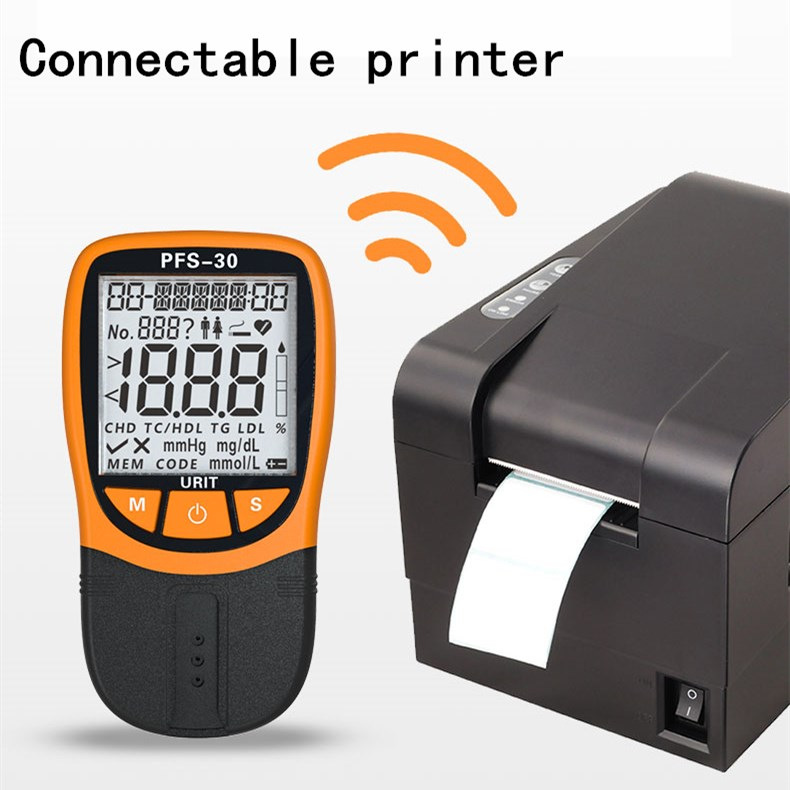

- Data Output: USB / Bluetooth (for PFS-30 only)
Measurement Ranges
- Total Cholesterol (TC): 2.59–12.93 mmol/L (100–500 mg/dL)
- High-Density Lipoprotein (HDL): 0.39–2.59 mmol/L (15–100 mg/dL)
- Triglycerides (TG): 0.51–7.34 mmol/L (45–650 mg/dL)
Additional Specifications

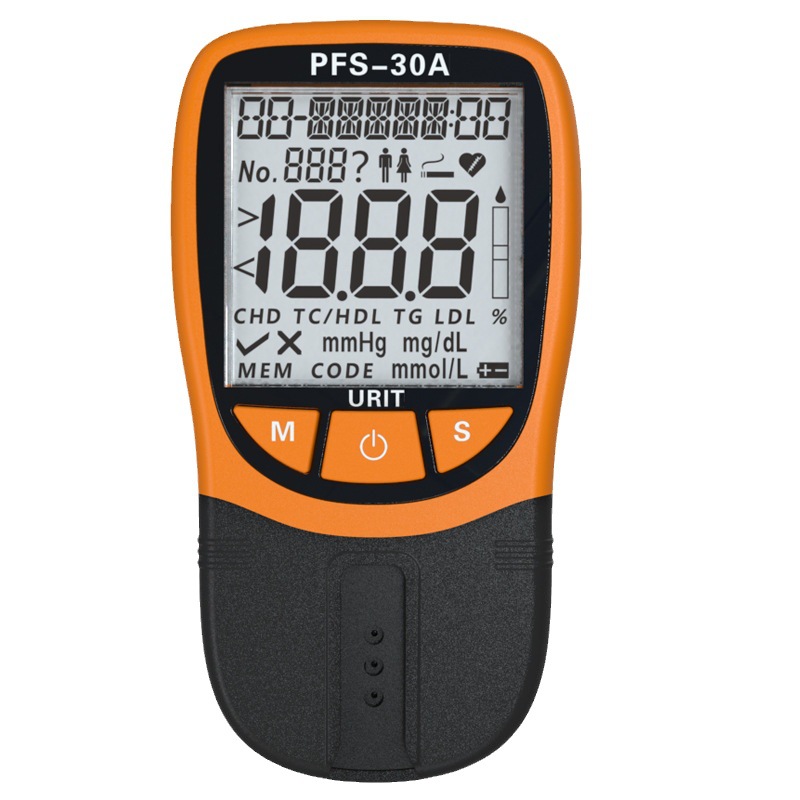

- Display Screen: LCD
- Coronary Heart Disease Risk Assessment: FRA and PRO optional
- Device Dimensions: 137mm (L) × 75mm (W) × 25mm (H)
- Sample Type: Capillary or venous whole blood
- Device Weight: 125g (excluding batteries)
- Sample Volume: 35–40 μL
- Power Requirement: DC 4.5V (3 AAA batteries)
- Testing Time: 120 seconds
- Battery Life: 100 hours or 1200 tests
