Feature:

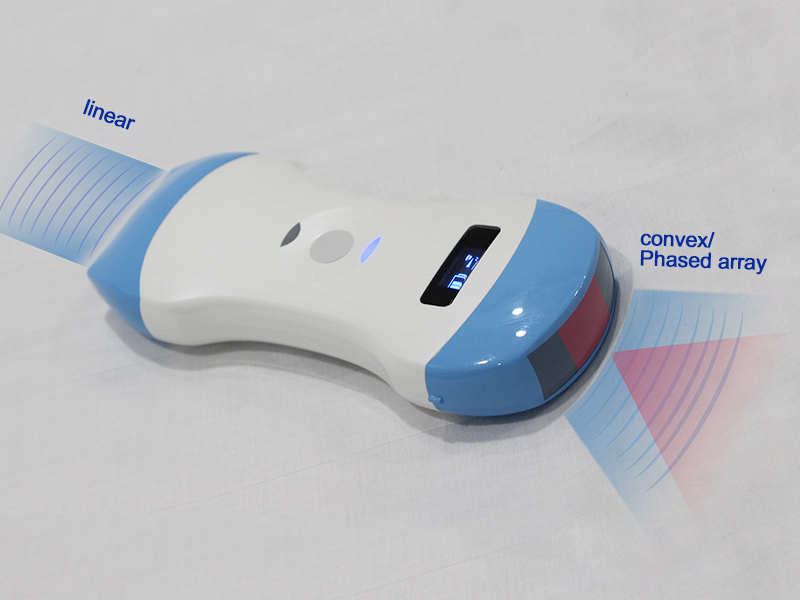

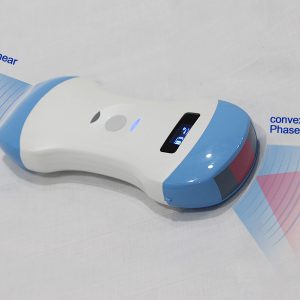

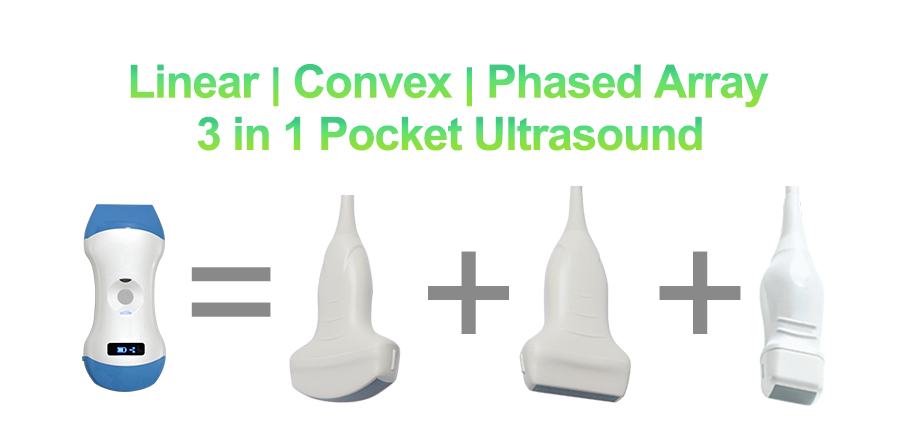

• Convex+linear+phased array 3 in 1
• Advanced digital imaging technology, clear image
• High cost-effective
• Wireless connectivity, wireless charging, easy to operate

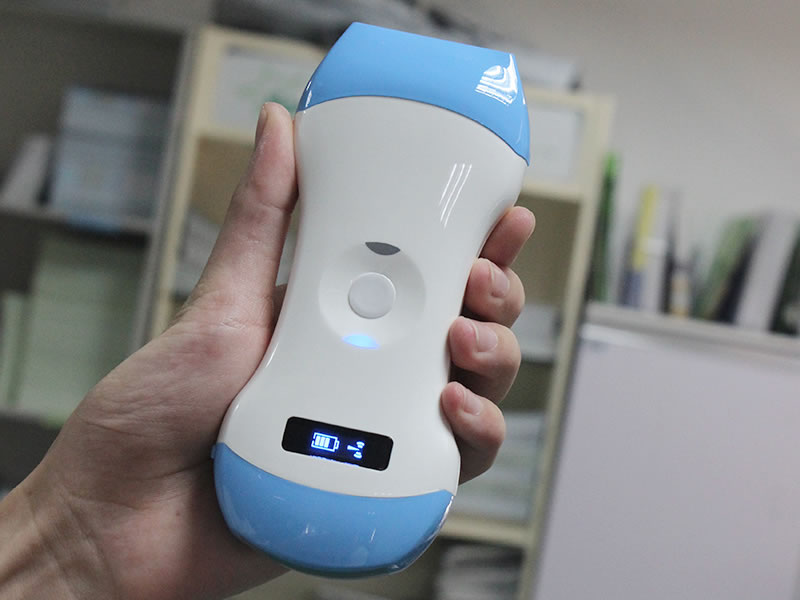

• Small and light,easy to carry
• Applicable in emergency, clinic, outdoor and vet inspection
• Intelligent terminal platform, powerful expansion functions on application, storage, communication, printing
• Free software, no didden fees, and unlimited users
• Different APP for IOS/Android/Windows system
• APP with Chinese, English, Italy, Spain, Russian, German,Portuguese(Brazil)
Specifications:
• Frequency: Convex/Phasedarray probe 3.2MHz/5MHz,
Linear probe 7.5MHz/10.0MHz
• Display Depth: Convex 90/160/220/305mm, Linear 20/40/60/80mm
• Scan angle and width: convex 70°, Phasedarray 80°, linear 40mm
• Image Adjust: Gain, DYN, Focus, Depth, Harmonic, Denoise
• Puncture assist function: the function of in-plane puncture guide line,
out-of-plane puncture guide line, automatic blood vessel measurement,
and the enhancement function of needle point development.
• Noise reduction: 0-1-2-3-4
• Gain: 30db-105db
• Dynamic Range: 40/50/60/70/80/90/100/110
• Cineplay: auto and manual, frames can set as 100/200/500/1000
• Measure: Length, Area, Angle, Obstetrics
• Battery working time: 3 hours

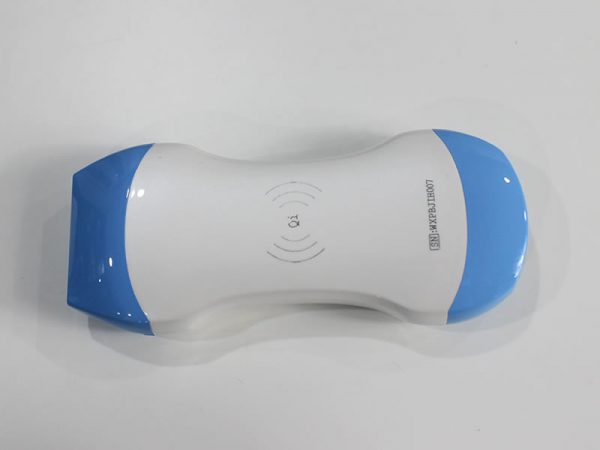

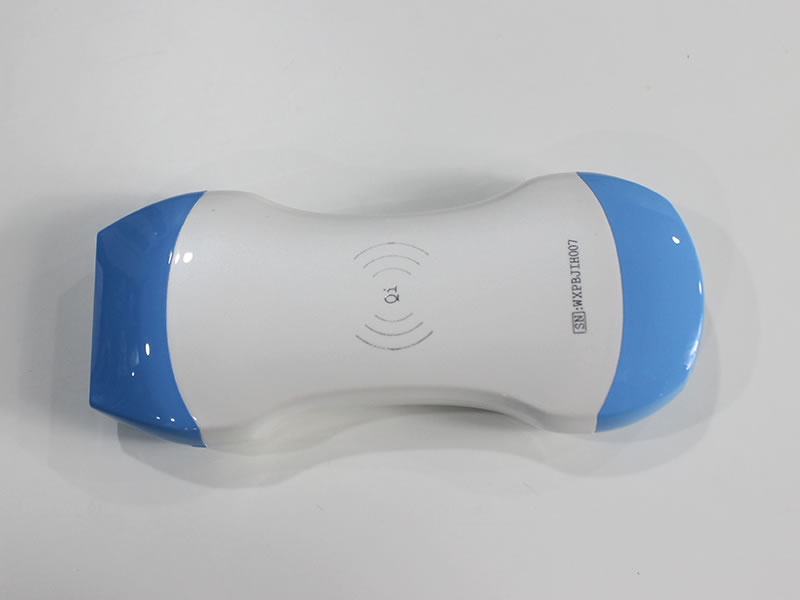

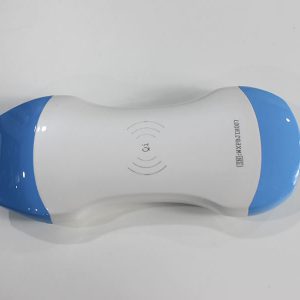

• Charge: by wireless charger, 2 hours
• Dimension: 156×60×20mm
• Weight: 250g
• Wifi type: 802.11g/20MHz/5G/450Mbps

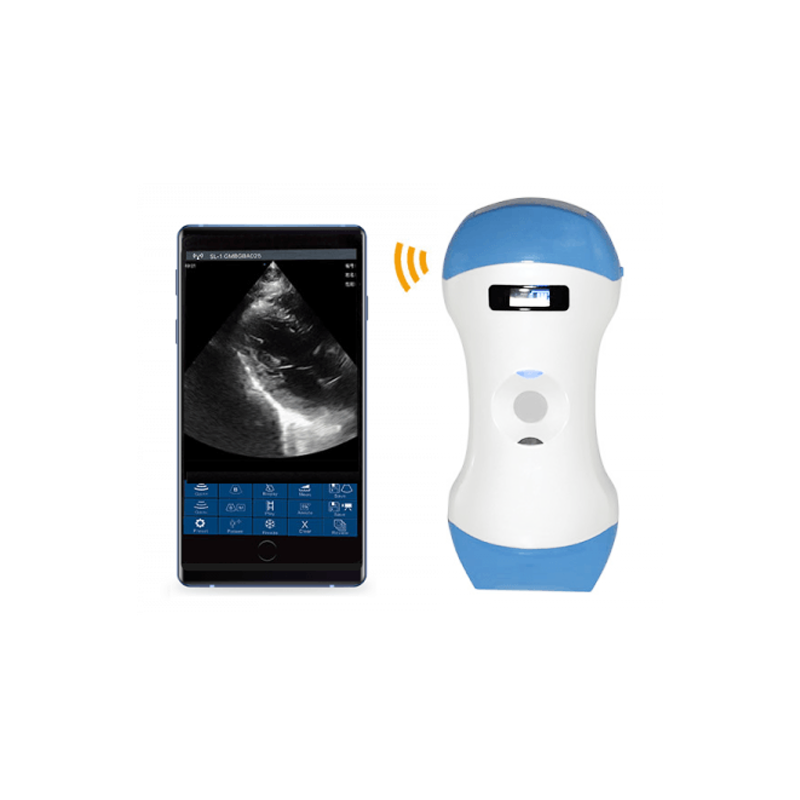

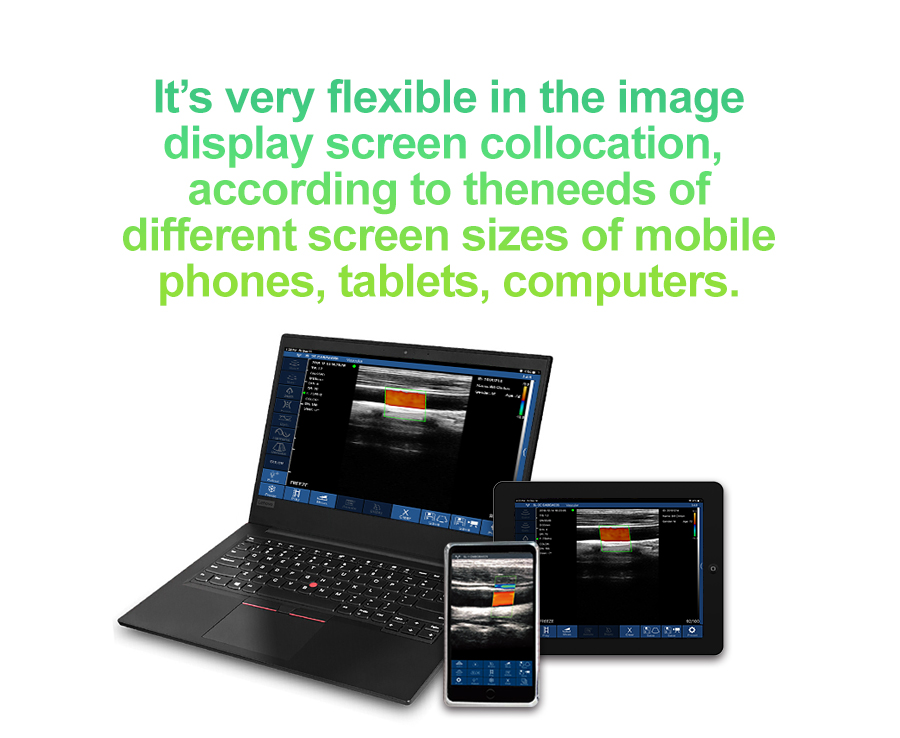

• Working system: Apple iOS and Android, Windows

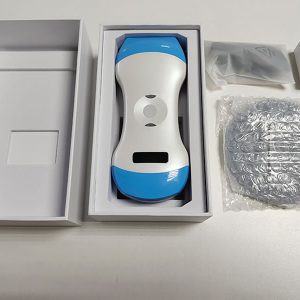

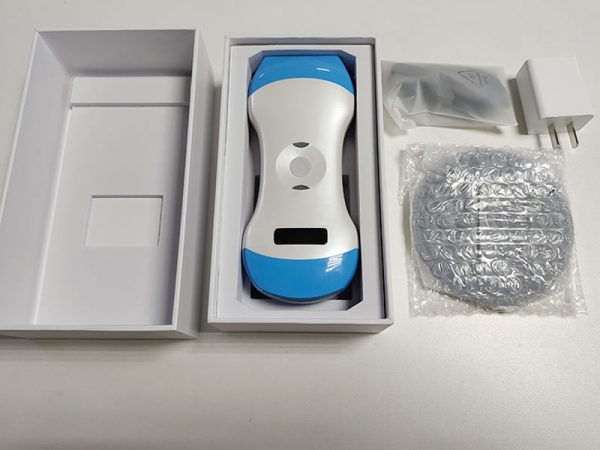

Configuration:

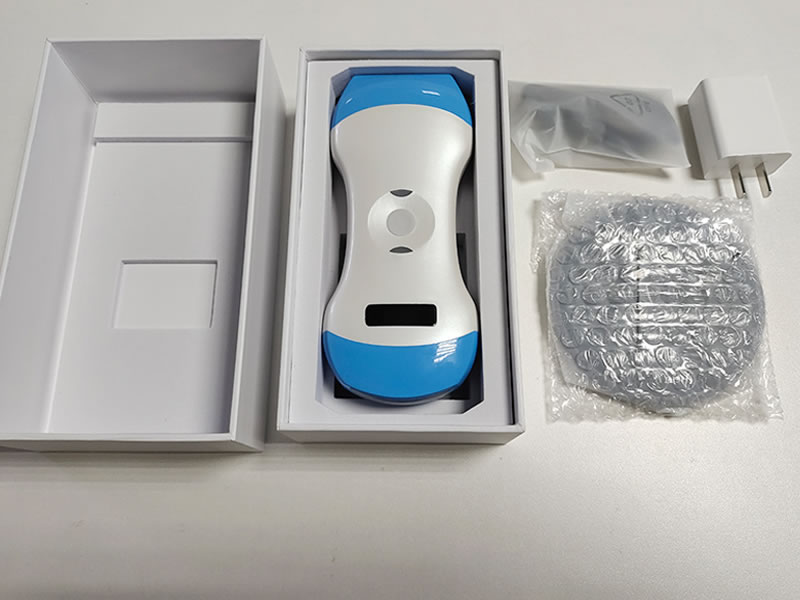

Standard Configuration：Wireless Probe Type Ultrasound Scanner x 1 unit, USB Charging Cable x 1pc
Optional：Carrying Bag, Aluminium Suitcase, Stainless Steel Puncture Guide, Wireless Power Bank, Android or iOS Phone/Tablet, Tablet Bracket, Trolley
