• Scan mode: Electronic Array scanning
• Frequency: convex probe 3.2/5MHz, linear probe 7.5/10MHz
• Elements: 128 elements
• Scanning Depth: Convex 90-305mm, Linear 20-80mm, adjustable
• Field of view: Convex R60, Linear L40

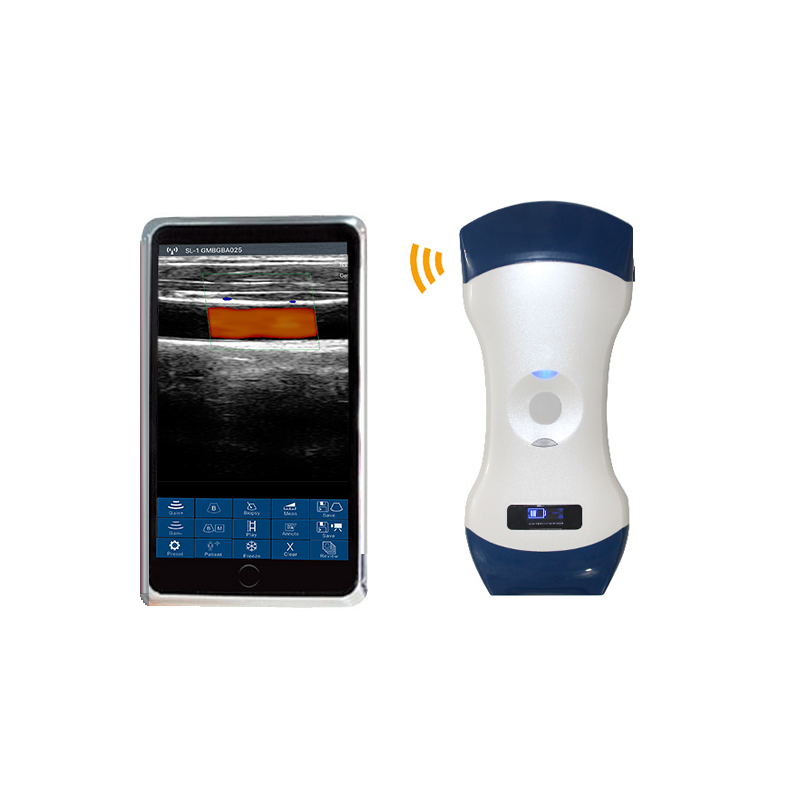

• Screen: Smart phone or tablet screen
• Supporting system: iOS, Android, Windows

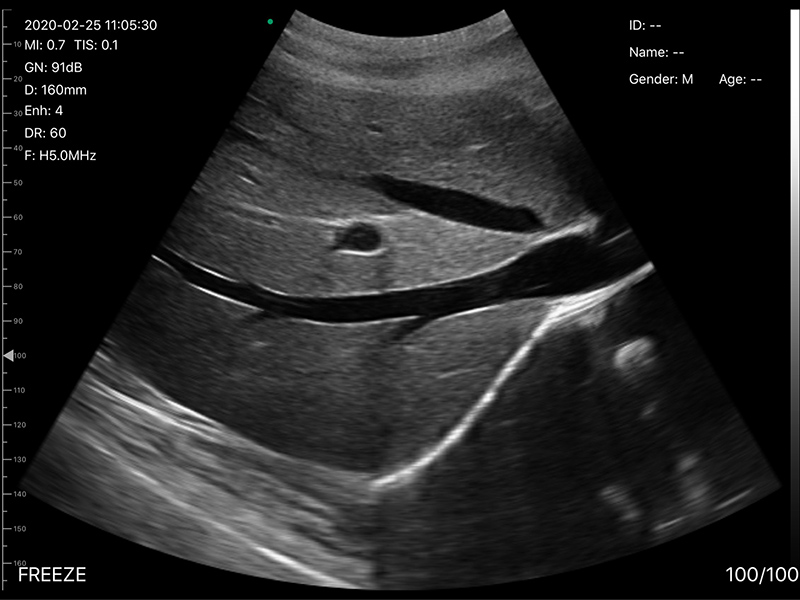

• Display mode: B, B/M, Color, PDI, PW
• Image gray scale: 256 level
• Frame rate: 18f/s
• Gain: 30db-105db
• Noise reduction: 0-1-2-3-4
• Dynamic Range: 40/50/60/70/80/90/100/110
• Image/Video Storage: Store on mobile phones, Tablet PC
• Measure: distance, area, obstetrics and other
• Power: by built-in lithium battery, 2800mAh
• Battery working time: 3 hours
• Size: 156mm×60mm×20mm
• Net Weight: 250 gram
